SaniMicro

SaniMicroThe Toftejorg SaniMicro is a rotary spray head that uses cleaning media to provide coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure.

The double ball bearing in the Toftejorg SaniMicro’s rotating head makes the device suitable for all industrial cleaning applications, including tanks, reactors, vessels and other containers ranging from 0.05 to 1 m3 (10 – 250 US gallons), depending on dimensions and cleaning task. Assistance with optimal application positioning and other technical recommendations are available in CAS format.

Working principle

The flow of the cleaning media causes the head of the Toftejorg SaniMicro to rotate, and the fan-shaped jets lay out a swirling pattern throughout the tank or reactor. This generates the impact needed for the efficient removal of residual product; the cascading flow covers all internal surfaces of the vessel.

Standard Design

The Toftejorg SaniMicro is available in Hastelloy C4 and 1.4401 (316).

Specifications

Materials
Housing, Inlet connection,
Head: 1.4404 (316L),
Balls: 1.4401 (316)

Weight
75 g (0.2 lbs)

Lubricant
Self-lubricating with the cleaning fluid

Working pressure
1 – 3 Bar

Recommended pressure
2 Bar

Max. working temperature
95 °C (203 °F)

Max. ambient temperature
140 °C (287 °F)

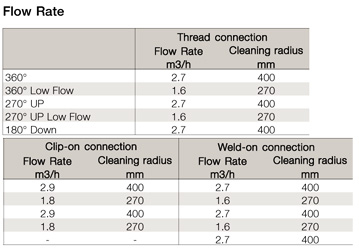

Spray Pattern
Cleaning pattern 360°, 360°LF, 270°, 270°LF, 180°D
Max. radius 400 mm

Wetting radius
Max. radius 2,5 M

Impact Cleaning radius

Max effective 0,6 M



Min. tank opening
25 mm diameter (DN 25)

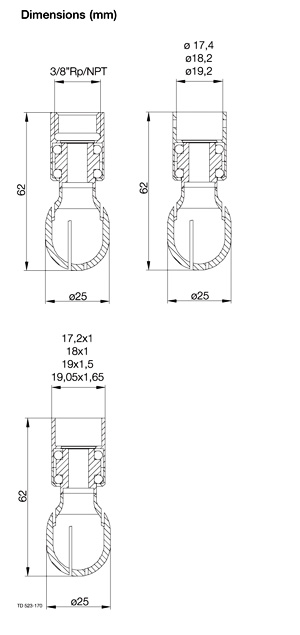

Connection
3/8” Rp (BSP) or NPT thread, Clip-on or weld-on for pipe

Options
Downpipe assemblies with Tri-Clamp fittings and flange connections in 1.4401 (316) or Hastelloy C4.

Certificates
2.2 – 3.1.B – ATEX
