SaniMega
The Sani Mega rotary spray head provides a controlled rotating fan impact cleaning action. It is an automatic device with an optimised design for distribution of cleaning fluids.
Application
Processing and storage tanks ranging from 50 to 350 m3 (13,000 to 92,000 US gallons). It is particularly suited to vertical storage tanks in the food, brewing and other beverage industries where a scrubbing effect is needed to clean at the fill level.
Operation
The flow of the cleaning fluid causes the gear unit to rotate the body of the cleaning head. The resulting fan impact jet provides a swirling action down the tank wall.
Options
- A non-invasive electronic rotation sensor to validate speed of the cleaner can be included.
- Downpipe length 800 or 1,000 mm
- Inlet connection as welding end 2″ ISO (ø51 x 1.2) . Tank inlet as DIN Union NW100
- Counter parts to the standard clamp connections including gaskets and clamp rings
Quality System
Toftejorg Tank Cleaning Equipment is produced in accordance with ISO 9001 International Quality Standards.
Ordering Information
Please specify required connections, choice of downpipe length and confirm application suitability.
Specifications
Materials
AISI 316L, AIS1316.PEEK, EPDMTefzel. VITaN
Weight
6.0 kg (13.3Ibs)
Lubricant
Self-lubricating with the cleaning fluid
Working pressure
2-4 bar (29-58 psi)
Recommended pressure
3 bar (44 psi)
Max. working temperature
95 °C (203 °F)
Max. sterilization temperature
140 °C (284 °F)
Max. ambient temperature
140 °C (284 °F)
Effective cleaning radius
3 m(10 ft.)
Standard connection
Inlet 2″ ISO clamp
Tank: 3″ ISO clamp

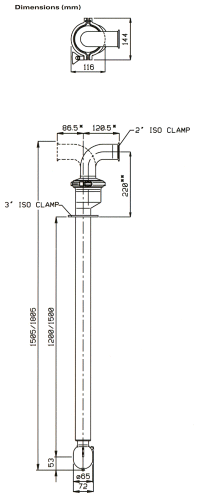

Standard downpipe length
1,200 or 1,500 mm
Min. tank opening
ø72.5 mm
