SaniJet 25

SaniJet25The Toftejorg SaniJet 25 rotary jet head provides 360° indexed impactcleaning over a defined time period. It is automatic and represents a guaranteed means of achieving quality assurance in tank cleaning.

Used in food and dairy processes, pharmaceutical and biotechnology industries, the device is suitable for processing, mixing and storage tanks and vessels between 15 and 150 m3 (4,000 to 40,000 US gallons). The design is particularly suitable for ultra-hygienic industries that follow European Hygienic Engineering & Design Group Guidelines.

Working principle

The flow of the cleaning fluid makes the nozzles perform a geared rotation around the vertical and horizontal axes. In the first cycle, the nozzles lay out a coarse pattern on the tank surface. The subsequent cycles gradually make the pattern more dense, until a full pattern is reached after 8 cycles.

Standard Design

The choice of nozzle diameters can optimise jet impact length and flow rate at the desired pressure. Welding adaptors with sealing are available as an accessory. The Toftejorg SaniJet 25 is designed, tested and approved according to EHEDG guidelines. As standard documentation, it can be supplied with a “Declaration of Conformity” for material specifications. Conformity of Declaration ATEX Directive 94/9/EC available on request.


A. Electronic rotation sensor to verify 360° coverage.
B. Down pipes.


1.4404 (316L), SAF 2205, UNS S 21800, PEEK, PFA HP and EPDM.


Avoid hard and abrasive particles in the cleaning liquid, as this will cause increased wear and/or damage of internal mechanisms. It is recommended to install a filter in the supply line.


Surface finish
External surface finish: Ra = 0.5 µm

5.1 kg (11 lbs)

Self-lubricating with the cleaning fluid

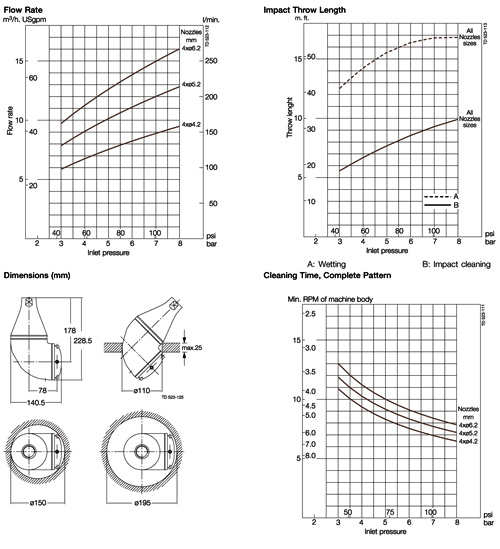

Working pressure
3 – 8 bar (45 – 115 psi)

Recommended pressure
4 – 7 bar (58 – 100 psi)

Max. working temperature
95 °C (203 °F)

Max. ambient temperature
140 °C (284 °F)

Max throw length
9 – 14 m(29 – 46 ft)

Impact throw length
4 – 8 m (13 – 26 ft)


Cleaning Pattern The above drawings show the cleaning pattern achieved on a cylindrical horizontal vessel. The difference between the fi rst cycle and the full pattern represents the number of additional cycles available to increase the density of the cleaning.
