MultiJet 40
The Multijet 40 is a rotary jet head. It provides 360° indexed impact cleaning over a defined period of time.
Applications
For applications where cost-effective and impact cleaning with rotary jet heads is needed, but where compliance with hygienic design standards is not a requirement. Process storage and transportation tanks between 50 and 500 m3(13,000 to 130,000 US gallons). The machine is designed to work under conditions where fibres, finer particles etc. in the cleaning media may be recirculated through the machine.
Operation
The flow of the cleaning fluid makes the nozzles perform a geared rotation around the vertical and horizontal axes. In the first cycfe, the nozzles layout a coarse pattern on the tank surface. The following cycles make the pattern gradually more dense until a full pattern is reached after 8 cycles.
Options

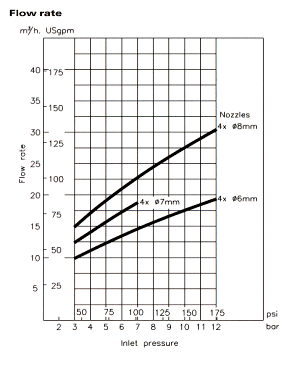

The choice of nozzle diameters can optimise jet impact length and flow rate at the desired pressure. An electronic rotation sensor to validate 360° coverage can also be included. The Multijet 40 can be supplied with a downpipe supporting flange.
Ouality System
Toftejorg Tank Cleaning Equipment is produced in accordance with ISO 9001 International Quality Standard.
Ordering information
Please specify nozzle size, inlet/guide configuration. connections and confirm appfication suitability.
Specification
Materials
AISI 316L, AIS1316. PTFE. PEEK. Tefzel. VITON
Surface Finish
External glassbeated Interna I ca st
Weight
6.1 kg (13.6 Ibs)
Lubricant
Self-lubricating with the cleaning fluid
Working pressure
3 – 12 bar (44 – 174 psi)
Recommended pressure
3 – 8 bar (44 – 116 psi)
Max. working temperature
95 °C (203 °F)
Max.ambient temperature
140 °C (284 °F)

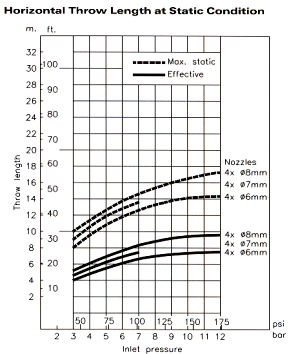

Max. throw length, static
8 – 17m (26 – 56 f t.)
Effective throw length
4 – 10 m (13 – 32 f t.)
Standard thread
1 1/2″ BSP or NPT. female
Min. tank opening
See dimension drawings
The above drawings show the cleaning pattern achieved on a cylindrical horizontal vessel. The difference between the first cycle and the full pattern represents the number of additional cycles available to increase the density of the cleaning.
