TZ-74 Brew Kettle Version
The TZ-74 brew kettle version is a special version of the TZ-74 rotary jet head. It provides 360° indexed impact cleaning over a defined period of time. It is automatic and represents a guaranteed means of achieving quality assurance when cleaning tanks.
Applications
Processing, storage and transportation tanks and vessels between 50 and 500 m3 (13,000 to 130,000 US gallons). The machine is equipped with special sealings and therefore suitable to work under rough conditions asin brew kettles where fibres, particles etc. in the cleaning media may be recirculated through the machine.
Operation

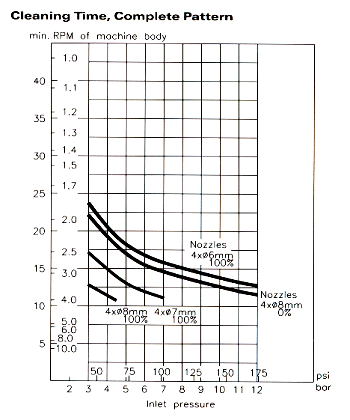

The flow of the cleaning fluid makes the nozzles perform a geared rotation around the vertical and horizontal axis. In the first cycle, the nozzles layout a coarse pattern on the tank surface. The following cycles make the pattern gradually more den se until a full pattern is reached after 8 cycles.
Options

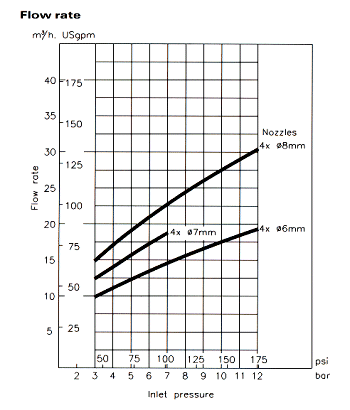

The choice of nozzle diameters can optimise jet impact length and flow rate at the desired pressure. An electronic rotation sensor to validate 360° coverage can also be included.
Quality System
Toftejorg Tank Cleaning Equipment is produced in accordance with ISO 9001 International Quality Standard.
Ordering information
Please specify nozzle size, inlet/guide configuration, connections and confirm application suitability.
Specification
Materials
AISI316L, AIS1316, PTFE, PEEK, Tefzel, VITON
Weight
6.1 kg (13,6Ibs)
Lubricant
Self-lubricating with the cleaning fluid
Working pressure
3 – 12 bar (44 – 174 psi)
Recommended pressure
3 – 8 bar (44 – 116 psi)
Max. working temperature
95 ° G (203 ° F)
Max. ambient temperature
140 ° G (284 ° F)

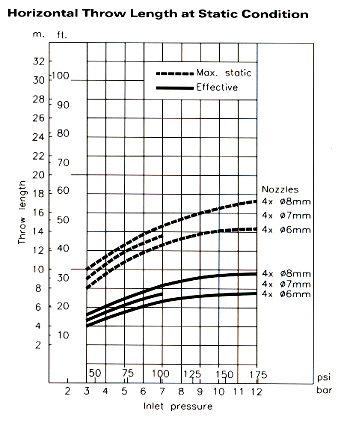

Max. throw length, static
8 – 17 m (26 – 56 f t.)
Effective throw length
4 – 10m (13 – 32 f t.)
Standard thread
11/2″ BSP or NPT, female
Min. tank opening

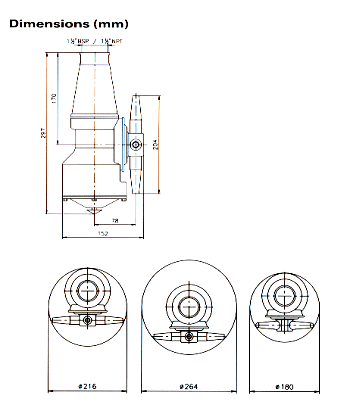

See dimension drawings
The above drawings show the cleaning pattern achieved on a cylindrical horizontal vessel. The difference between the first cycle and the full pattern represents the number of additional cycles available to increase the density of the clean.
